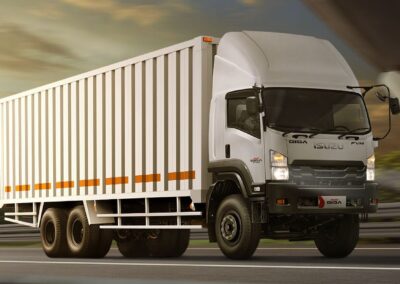

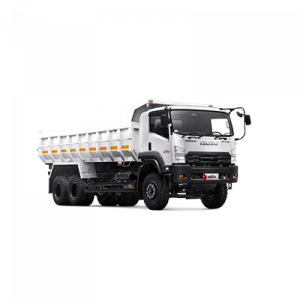

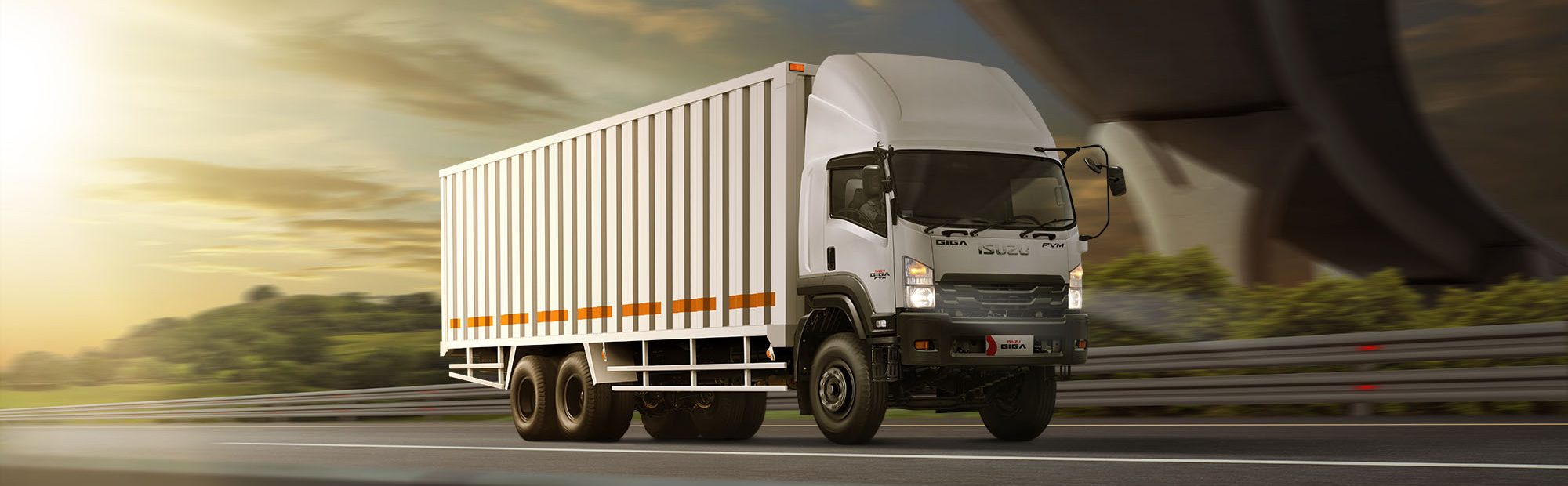

ISUZU GIGA 6×4
| VARIAN
Isuzu Giga 6×4 tersedia dalam 1 varian yang bisa anda pilih. Untuk melihat warna lainnya silahkan slide pada gambar produk atau klik tanda panah pada gambar. Atau tekan tombol dibawah untuk mengajukan form Test Drive.
| PRICELIST
ISUZU GIGA 6x4
| TYPE | ON THE ROAD |
| FVZ N HP | 1.165.000.000 |
| FVZ L HP MX | 1.160.000.000 |
| FVZ U HP | 1.186.000.000 |
| SPESIFIKASI
| Specification | Details |
|---|---|
| Overall Length (OAL) | 7,580–11,945 mm |
| Overall Width (OW) | 2,485 mm |
| Overall Height (OH) | 2,965–2,975 mm |
| Wheelbase (WB) | 3,565 + 1,370 mm / 4,115 + 1,370 mm / 5,825 + 1,370 mm |
| Front Overhang (FOH) | 1,250 mm |
| Rear Overhang (ROH) | 1,375–3,500 mm |
| Cabin to End (CE) | 5,460–9,840 mm |
| Ground Clearance | 275–285 mm |
| Chassis Dimension | 870 × 305 × 8 mm / 870 × 305 × 9 mm |
| Specification | Details |
|---|---|
| Curb Weight | 7,270–8,070 kg |
| Gross Vehicle Weight (GVW) | 26,000 kg |
| Front Axle Capacity | 6,000 kg |
| Rear Axle Capacity | 20,000 kg |
| Specification | Details |
|---|---|
| Minimum Turning Radius | 7.6–10.8 m |
| Maximum Gradeability | 45% |
| Maximum Speed | 83 km/h |
| Maximum Power | 285 PS / 2,400 rpm |
| Maximum Torque | 90 kg.m / 1,450–2,400 rpm |
| Specification | Details |
|---|---|

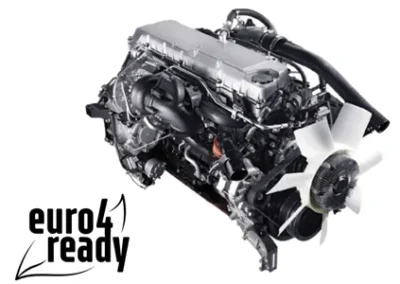

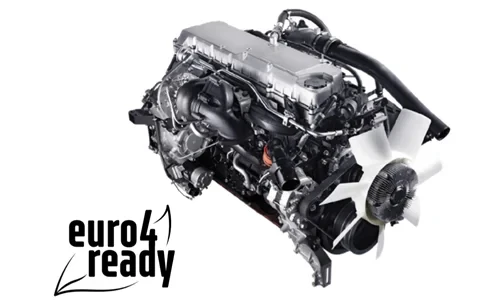

| Engine Model | 6HK1-TCS |
| Engine Type | Direct Injection, OHC, 6-Cylinder, Heavy Duty Common Rail, VGS Turbo Intercooler |
| Emission Standard | Euro 4 (EGR & DOC) |
| Displacement | 7,790 cc |
| Bore × Stroke | 115 × 125 mm |
| Maximum Power | 285 PS / 2,400 rpm |
| Maximum Torque | 90 kg.m / 1,450–2,400 rpm |
| Specification | Details |
|---|---|
| Transmission Model | ES11109DD |
| Transmission Type | 9-Speed Manual + Crawler Gear |
| Low Gear | 12.638 |
| 1st Gear | 8.807 |
| 2nd Gear | 6.550 |
| 3rd Gear | 4.768 |
| 4th Gear | 3.548 |
| 5th Gear | 2.482 |
| 6th Gear | 1.846 |
| 7th Gear | 1.344 |
| 8th Gear | 1.000 |
| Reverse Gear | 13.210 |
| Final Gear Ratio | 6.143 |
| Specification | Details |
|---|---|
| Front Suspension | Rigid Suspension with Multi Leaf Spring |
| Rear Suspension | Semi-Elliptical Alloy Steel Leaf with 6-Link Torque Rod |
| Brake Type | Full Air |
| Service Brake | Full Air with Drum Brake |
| Parking Brake | Lever Mechanism with Air Valve |
| Exhaust Brake | Available |
*Spesifikasi yang ditampilkan merupakan unit dengan tipe tertinggi.
Untuk mengetahui informasi tipe unit lainnya, Anda dapat menghubungi kontak yang tersedia pada website ini
